Coolant Pump

VPKCF and 20PV Series are multi-function hydraulic pumps specially designed for machine tools of deep-hole cutting, gun drilling, high pressure coolant system, can be used with hydraulic oil, water glycol fluids, water-based processing fluids.

Features:

Specially designed for Gun drilling machines and drilling all deep hole parts.
High pressure spindle central water discharge.
Applicable to Soluble cutting fluid (95% water and 5% oil) and oil hydraulic cutting fluid.

These coolant pumps are used for high pressure coolant systems & mist coolant lubrication spray system. These pumps are made of special materials with unique design of low noise, low pulsation and high working pressure, allowing continuous operation.

The reliable composition and manufacturing quality ensure a trouble-free operation that enable to increase processing speed by 3-5 times.

Applications:

• Machine tool (center outlet)
• Filtration
• Cooling system
• Parts cleaning machine
• Deep drilling, cutting & washing system (gun drilling)

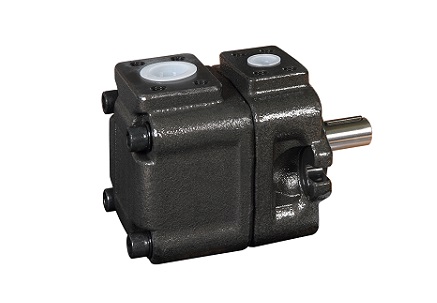

Fixed Displacement Coolant Pump

Model: 15PV, 20PV, 25PV, 35PV, 45PV

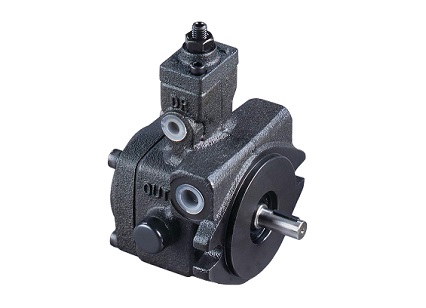

Variable Coolant Pump

Model: VPKCF 8-40

Specifications of Fixed Coolant Pump:

Model 型號		Delivery Flow(l/min)at no-load pressure 無負壓的傳輸流量			Running Speed(rpm) 轉速		Max Pressure (Kgf/cm²)最大壓力
		Running Speed(rpm) 轉速			Max 最大	Min 最小	Max Pressure (Kgf/cm²)最大壓力
		1000	1500	1800	Max 最大	Min 最小	Cont.	Preak.
15PV	06	6.2	9.3	11.2	1800	800	210	240
	08	8.1	12.1	14.6	1800	800	210	240
	11	11.2	16.8	20.1	1800	800	210	240
	14	14.3	21.5	25.7	1800	800	210	240
	17	17.1	25.6	30.7	1800	800	210	240
	19	19.2	28.8	34.5	1800	800	210	240
	23	23.3	34.9	41.9	1800	800	210	240
	26	26.1	39.1	46.9	1800	800	210	240
	31	31.1	46.6	─	1500	800	175	240
	38	38.1	─	─	1200	800	175	230
20PV	06	6.2	9.3	11.2	1800	800	210	230
	08	8.1	12.1	14.6	1800	800	210	230
	11	11.2	16.8	20.1	1800	800	210	230
	14	14.3	21.5	25.7	1800	800	210	230
	17	17.1	25.6	30.7	1800	800	210	230
	19	19.2	28.8	34.5	1800	800	210	230
	23	23.3	34.9	41.9	1800	800	210	230
	26	26.1	39.1	46.9	1800	800	210	230
	31	31.1	46.6	─	1500	800	175	230
	38	38.1	─	─	1200	800	175	230
25PV	18	18.1	27.2	32.6	1800	800	210	230
	22	22.1	33.2	39.8	1800	800	210	230
	26	26.2	39.3	47.1	1800	800	210	230
	32	32.1	48.1	57.7	1800	800	210	230
	38	38.2	57.3	68.7	1800	800	210	230
	43	43.2	64.8	77.7	1800	800	210	230
	47	47.1	70.0	85.0	1800	800	210	230
	52	52.3	78.4	94.1	1800	800	210	230
	60	60.2	90.3	108.3	1800	800	210	230
	65	65.3	97.9	117.5	1800	800	210	230
	75	75.0	112.5	─	1500	800	210	230
35PV	60	60.3	90.4	108.5	1800	600	175	210
	66	66.4	99.6	119.5	1800	600	175	210
	76	76.3	114.4	137.3	1800	600	175	210
	82	82.2	123.3	147.9	1800	600	175	210
	88	88.3	132.4	158.9	1800	600	175	210
	94	94.5	141.7	170.1	1800	600	175	210
	108	108.2	162.3	194.4	1800	600	175	210
	116	116.1	174.1	208.9	1800	600	175	210
	125	124.6	186.9	─	1500	600	175	210
45PV	136	136.8	204.0	246.0	1800	600	165	175
	156	156.2	234.0	280.0	1800	600	165	175
	189	189.5	284.0	340.0	1800	600	165	175
	200	200.0	300.0	360.0	1800	600	165	175
	216	216.0	324.0	─	1500	600	165	175
	237	237.0	355.0	─	1500	600	165	175

Specifications of Variable Coolant Pump:

Model	Operating Pressure (Kgf/cm²)		Rated Speed (rpm)		Net Weight
Model	Operating Pressure (Kgf/cm²)		MAX	MIN	Net Weight
VPKCF8	A1: 5-18 A3:30-55	A2:15-35 A4:50-70	1800	800	4.8Kg
VPKCF12	A1: 5-18 A3:30-55	A2:15-35 A4:50-70	1800	800	4.8Kg
VPKCF15	A1: 5-18 A3:30-55	A2:15-35 A4:50-70	1800	800	5.2Kg
VPKCF20	A1: 5-18 A3:30-55	A2:15-35 A4:50-70	1800	800	5.2Kg
VPKCF23	A1: 5-18 A3:30-55	A2:15-35 A4:50-70	1800	800	9.0Kg
VPKCF26	A1: 5-18 A3:30-55	A2:15-35 A4:50-70	1800	800	9.0Kg
VPKCF30	A1: 5-18 A3:30-55	A2:15-35 A4:50-70	1800	800	9.0Kg
VPKCF40	A1: 5-18 A3:30-55	A2:15-35 A4:50-70	1800	800	9.0Kg
